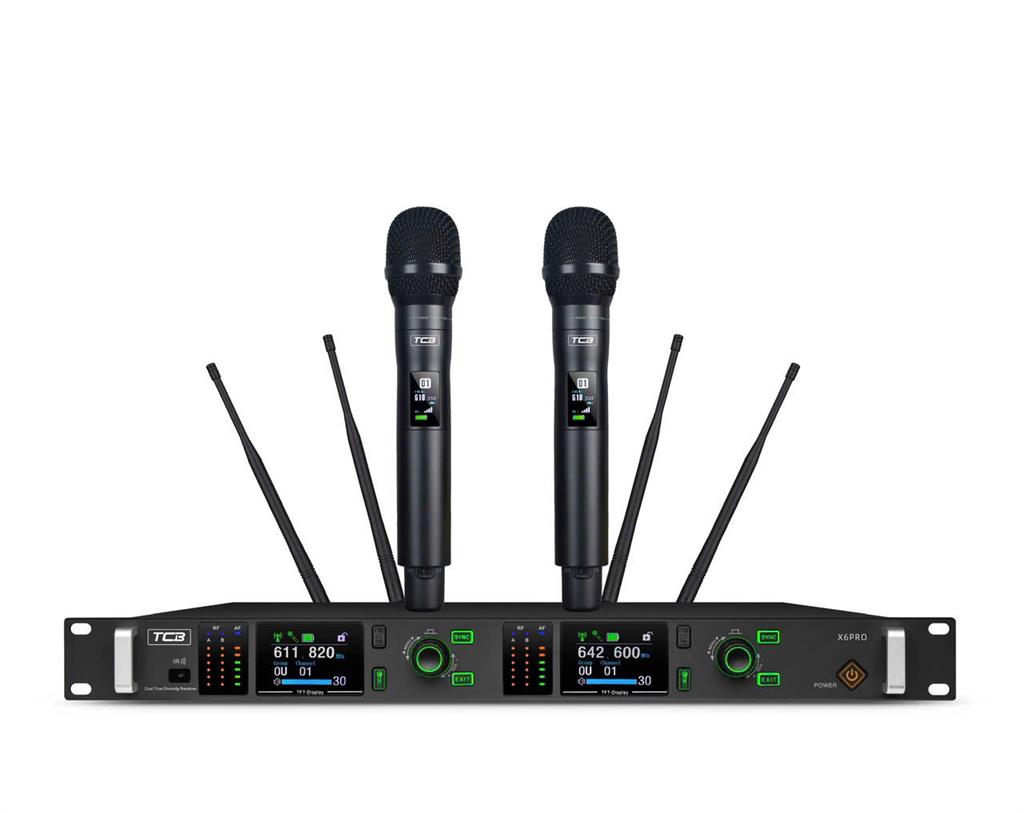

CẤU HÌNH CỦA MICRO TCB X6PRO
SPECIFICATIONS

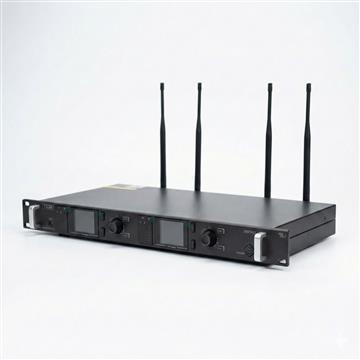

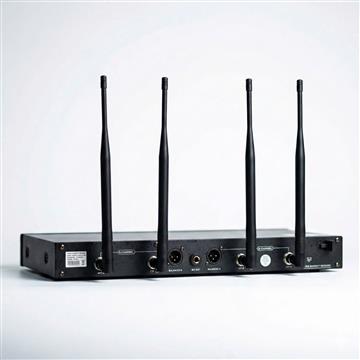

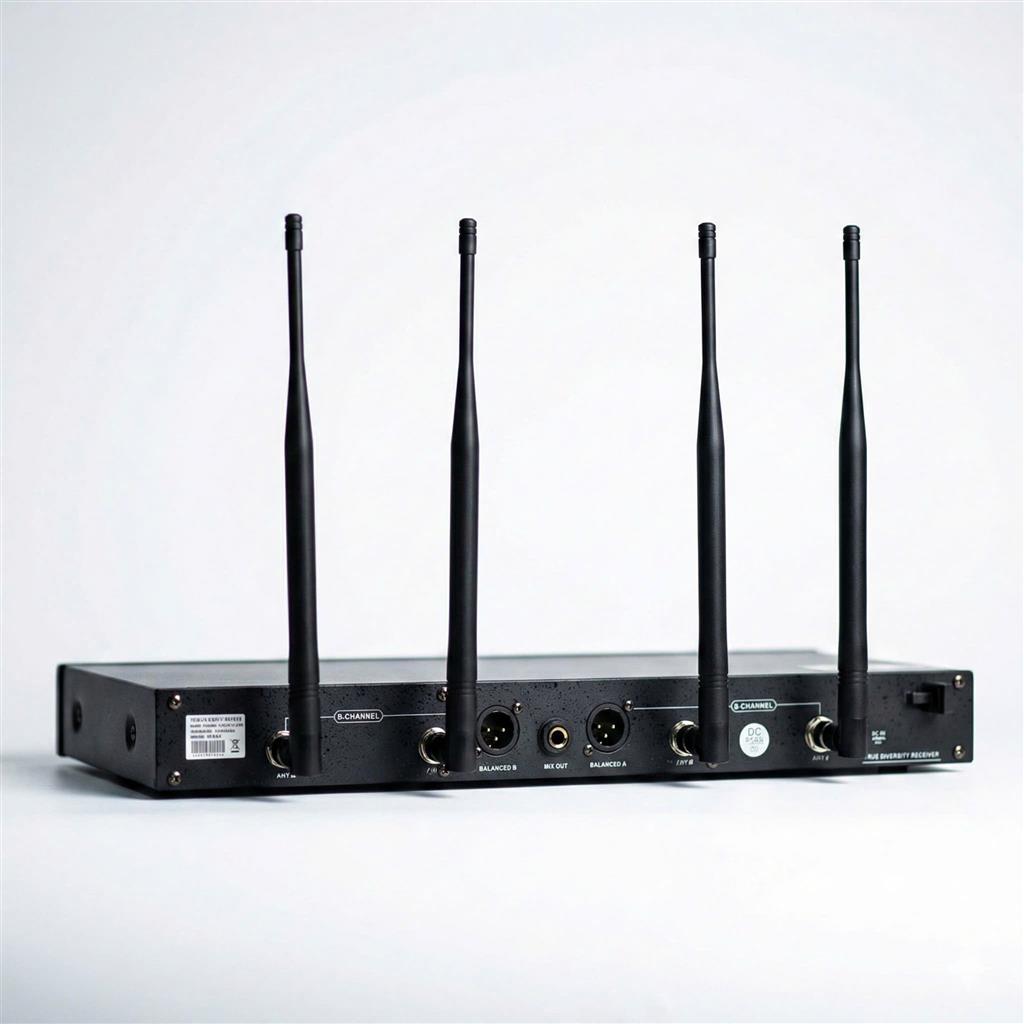

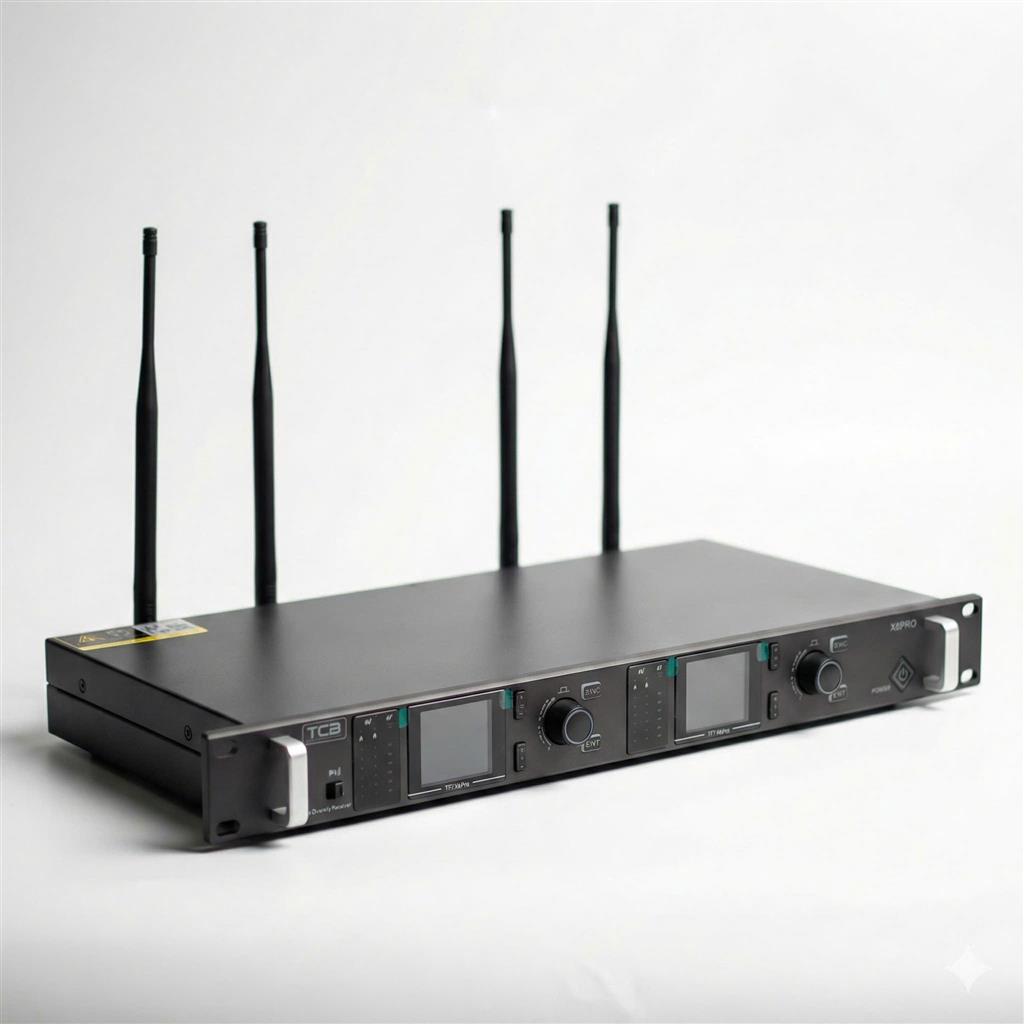

Receiver:
Frequency range: 610–698 MHz
Frequency bandwidth: 42M / 60M
Maximum number of channels: 4000 / 6000
Receiving sensitivity: -100 dBm (S/N = 12 dB)
Frequency stability: ±10 PPM
Antenna input: 4 × BNC / 50Ω
Image rejection: >100 dB
3rd order IMD suppression: >75 dB
Block suppression: >75 dB
Adjacent channel rejection: 100 dB ±200 kHz
Power supply: 12V / >1000 mA
Handheld Microphone:
Frequency range: 610–698 MHz
Frequency bandwidth: 88 MHz
RF power: 10 / 30 mW
Maximum deviation: 65 kHz
Power requirements: 2 × 1.5V AA batteries
Battery life: 8–10 hours (high power / 30 mW), 13–14 hours (low power / 10 mW)
Bodypack Transmitter:
Frequency range: 610–698 MHz
Frequency bandwidth: 88 MHz
RF power: 10 / 30 mW
Maximum deviation: 50 kHz
Power requirements: 2 × 1.5V AA batteries
Battery life: 8–10 hours (high power / 30 mW), 13–14 hours (low power / 10 mW)
System Performance:
Dynamic range: >110 dB
Total Harmonic Distortion (THD): <0.5% (wired)
Frequency response: 35 Hz – 18 kHz (wired)
